| Parameter | Value |
| Computer-Numerical-Control Drilling Machine | Automated Tapping and Drilling Machine |
| CNC Tapping Machine | BT40 Spindle Taper |
| Machine net weight | 3500KG |
| Drilling Capacity (Copper Parts) through-hole | external diameter 60mm |

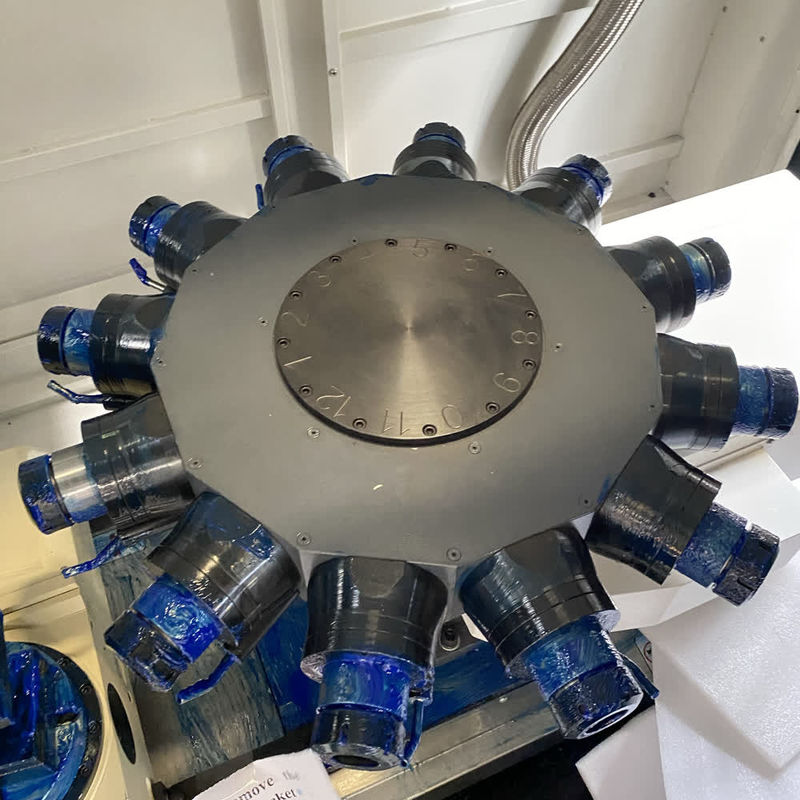

| Rotary Turret | 12 Axis |
| Tool Changing Motor | 750W |
| Base X-acis Max. travel (screw) | 450mm |
| X/Y/Z axis Max. Speed | 30m/min |
| X/Y/Z axis repeat positioning accuracy | 0.008mm |
| Rotating fourth axis | YT200R |
| Servo spindle motor power | 5.5KW |
| Lifting Z-acis Max. travel (screw) | 300mm |
| Saddle Y-axis Max. travel(screw) | 500mm |
| Spindle revolution | 0-3000rpm |
| Spindle taper | BT40 |
| Max. tapping (copper parts) | 50×3mm |
| Spindle turret tool changing time | 0.8s/180° |
| Working table size | 300*300mm |
| Dimension:L×W×H | 2300×1600×1900mm |
Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.
Packaging and Shipping for CNC Tapping and Drilling Machine (New):

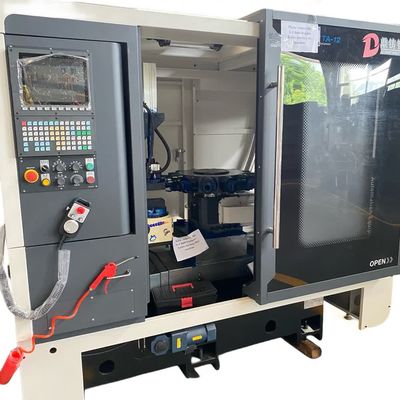

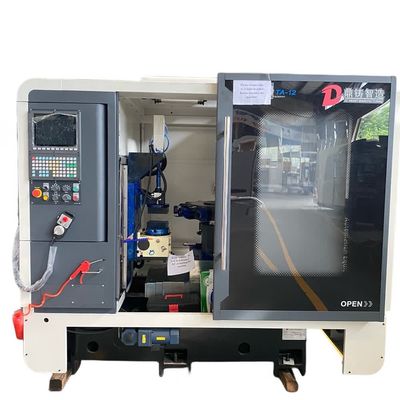

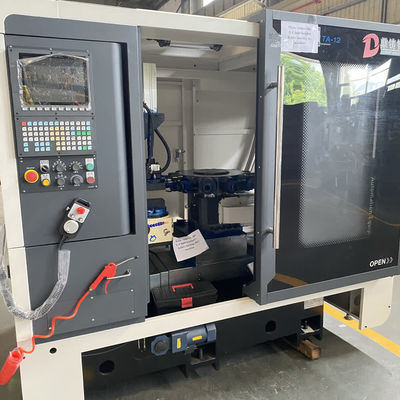

A1: The Brand Name of this CNC Tapping and Drilling Machine is DZ.
A2: The Model Number of this CNC Tapping and Drilling Machine is TA-12.
A3: This CNC Tapping and Drilling Machine is produced in CHINA.
A4: This CNC Tapping and Drilling Machine features high-precision, high-speed, reliable performance and a long service life.
A5: This CNC Tapping and Drilling Machine is mainly used for tapping and drilling various materials.
|
